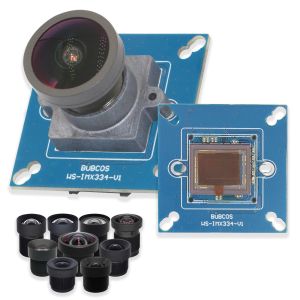

4K 8MP MIPI Camera Module IMX334 CSI High Speed Image Sensor Global Shutter Camera Module

Brand Name : HAOZHOU / OEM

Model Number : HZ-IMX334-V1 / OEM

Certification : CE / RoHS / FCC / ISO

Place of Origin : Shenzhen,China

MOQ : 1

Price : 18~45USD

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypay and others

Supply Ability : 500000 pieces/month

Delivery Time : 7 - 15 Work Days

Packaging Details : Tray+Anti-static bag in carton box

Mounting Type : MIPI CSI interface

Description : Global shutter MIPI camera module

Application : Industrial computer vision applications AR, VR

Sensor No : IMX334 B&W or RGB CMOS image sensor

Module Size : 32mm*32mm

Sensor Type : 1/1.8 inch

Pixel Size : 2.0um*2.0um

Transfer Rate : 1920*1080@120fps

Resolution : 3840(H) * 2320(V) (8megapixel)

Interface type : MIPI CSI / USB (OEM)

Object Distance : 10CM-infinity

Focus type : Fixed Focus Lens (customize)

FOV : 140° Support customization

Contact Now

Factory Customized High Quality Sony IMX334 4K CMOS Image Sensor, Global Shutter, Monochrome/B&W or RGB, 8MP, 60FPS, 1080P, 120FPS, High Speed MIPI CSI CMOS Image Sensor Module, Fisheye Wide Angle Fixed Focus HD 8MP Camera Module for Surveillance Camera, Iris Recognition, Robot Vision Diagonal 8.86mm (1/1.8 Inch) CMOS Solid State Image Sensor, Square Pixels, for Monochrome Cameras

The lMX334LLR is a CMOS active pixel type solid-state image sensor with a diagonal length of 8.86 mm (1/1.8 inches), a square pixel size, and 8.42 million effective pixels. It can collect light more efficiently to achieve high sensitivity and high quality in the visible and near-infrared light regions. The chip is powered by a triple power supply of analog 2.9V, digital 1.2V, and interface 1.8V, with low power consumption. The chip has the characteristics of high sensitivity, low dark current, and no smear. The chip is equipped with an electronic shutter with variable charge integration time (applications: surveillance cameras, factory automation cameras, industrial cameras).

1) Sony IMX334-8Megapixel black and white monochrome or RGB Sensor Surveillance camera Applications

2) global shutter technology high-speed image sensors camera module

3) High frame rate 60fps @ full resolution 3840(H)*2160 (V)

4)1920 x1080 @ 120fps resolution

5)MIPI CSI Interface, USB interface can initiate inquiry to consult suppliers.

6)DFOV = 140Degree (Optional)

7) Lenses and focal lengths can be configured as required

8) Support more customization

Module No.	WS-IMX334-V1
Module Size	32mm × 32mm
Object distance	10cm-∞ (Choose according to your needs)
Focus	Fixed Focus
Interface	MIPI CSI-2
Temperature (Operation)	-30°C to +85°C
Sensor Type
Sensor No.	Sony IMX334
Sercor Type	1/1.8'' CMOS Solid-state lmage Sensor
color	black and white / RGB
pixels	3840 (H) x 2160 (V) approx. 8.29 M pixels
Pixel Size	2.0µm x 2.0µm
Maximum frame rate in All-pixel scan mode	3840(H) x 2160(V) @ 60 frame/s
max S/N ratio	38db
Dynamic Range	68db
LENS	Choose according to your needs
Lens Structure	1G3P
Mount	M12*P0.5mm
FOV	DFOV 141°
F.F.L	2.02
F.NO	2.25
TV distortion	12%
IR filter	650 IR
Certifications
Certifications	FCC and CE
Application
Application	Surveillance cameras, FA Cameras, Industrial Cameras, Live broadcast camera, face recognition, AR, VR, witness comparison, machine equipment
